21.- Electronic scheme (updated 26/08/2020)

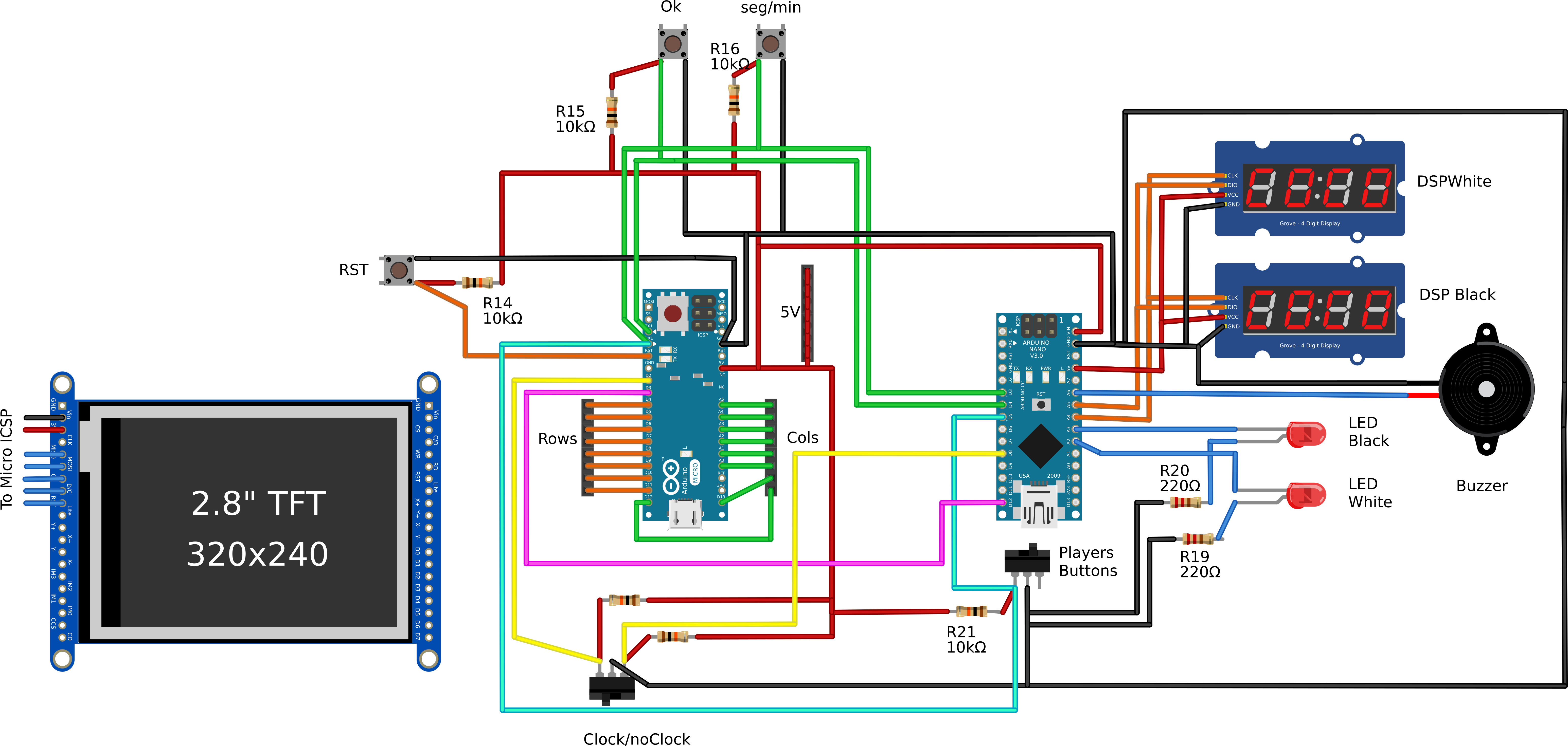

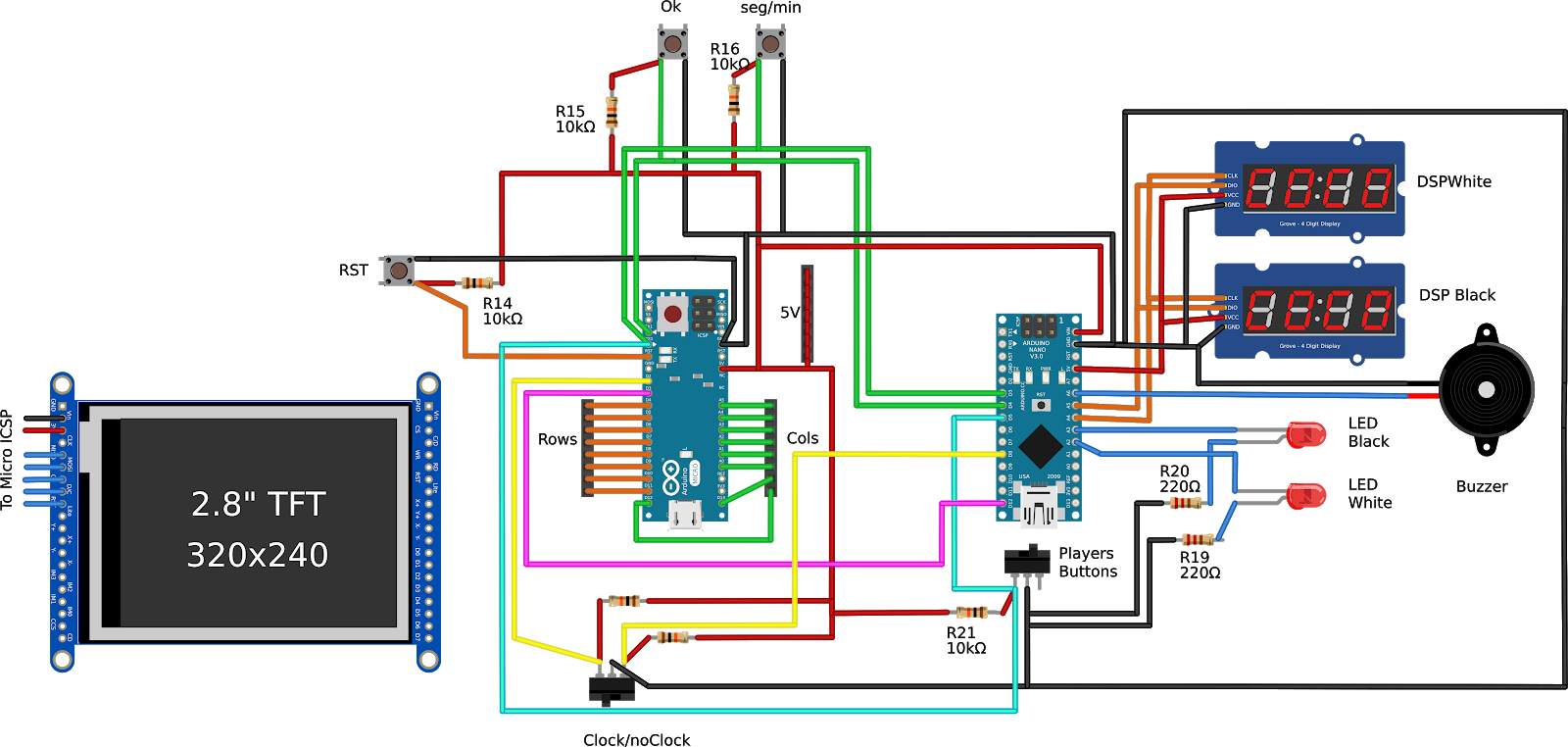

Aquest és l'esquema electrònic complert, es poden veure els dos microcontroladors, L'Arduino Micro (tft i codi de joc) i l'Arduino Nano (displays, codi del temps i (potser) buzzer).

Este es el esquema electrónico completo, se pueden ver los dos microcontroladores, El Arduino Micro (tft y código de juego) y el Arduino Nano (displays, código del tiempo y (tal vez) buzzer).

This is the complete electronic scheme, you can see the two microcontrollers, The Arduino Micro (tft and game code) and the Arduino Nano (displays, time code and (perhaps) buzzer).

Right click to download the image in order to see it in more detail

This schematic was made with opensource Fritzing:

https://fritzing.org/home/



UPDATED!!



I decided to make some changes to the first idea of the board. I removed the buzzer and I fixed one bug I didn't notice at the first time, and this is I connected the reset pins of the two cards in order to reset them both, with the first scheme I only was able to reset the micro card
